Flaw Detector МД-4K (МД-4П) is designed to detect the surface of defects such as disturbing the continuity of the metal by magnetic particle method. As the magnetizing elements are used permanent magnets. Detector doesn’t require a power supply that allows using it on the explosive and flammable environments, site areas and for welding in the field.
Flaw Detector МД-4K (МД-4П) is designed to detect the surface of defects such as disturbing the continuity of the metal by magnetic particle method. As the magnetizing elements are used permanent magnets. Detector doesn’t require a power supply that allows using it on the explosive and flammable environments, site areas mounting welding, in the field.
The mechanism of this device is based on the creation the leakage field above the defect of controlled parts with subsequent detection by magnetic suspension. The maximal density of magnetic lines of the leakage field is observed directly above the crack (or another defect) and decreases with moving away from it.

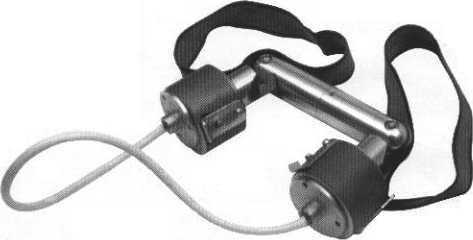

10 ммFlaw detector has two magnetizing unit which can be connected by swiveling device or flexible cable jumper. Magnetizing units are equipped with rectangular (MД-4П) or round (MД-4K) permanent magnets.
The kit includes tools for suspension application and visual inspection, placed in a suitcase container. The kit also includes a sample with artificial defects and his description, which allows comparing indicated picture on the sample with graphical description.
Specification:
| Type of detector | portable |
| The average size of the controlled flaw on the detail's surface with: | |
| rectangular magnets | 100 mm |
| round magnets | 120 mm |
| The peak voltage of magnetization block's poles MД-4П (MД-4K) | at least 1100 A / cm |
| Static friction of the magnetization blocks from the ferromagnetic surface is: | |
| MД-4П | 18-20 kgf |
| MД-4K | 35-40 kgf |
| Weight of the set | no more than 7 kg |
